Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics

Nanjing Fante Machinery Manufacture Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics

Place of Origin : Jiangsu, China

video outgoing-inspection : Provided

machinery test report : Not Available

core components : PLC, Engine, Bearing, Gearbox, motor, Gear

Brand Name : FANTE

warranty : 1 Year

material / metal processed : Brass / Copper, Carbon Steel

power (kw) : 80

weight (kg) : 3000

key selling points : High Safety Level, Competitive Price, High Productivity, Long Service Life

Application : Recycle Waste Metal

Name : Shredder

Usage : Waste metal

Warranty : 12 Months

Color : Client's Requirements

Crushing material : Types Waste Metal

Blades material : 9CrSi/D2/SKD-11/ Customized

Other name : Double Shaft Plastic shredder

Final product : 1-10 Cm

Function : Shredding Metal

Contact Now

Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability.
Model
FTHS-600
FTHS-1000
FTHS-1200
FTHS-1600
FTHS-1800
FTHS-2000
Power(kw)
11-15
30-75
37-150
150-264
150-220
150-500
Breaking chamber length(mm)
600
1000
1200
1600
1800
2000
Blade Size(mm)
⌀300-⌀800





Reducer
ZSY Or Planetary reducer





Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics

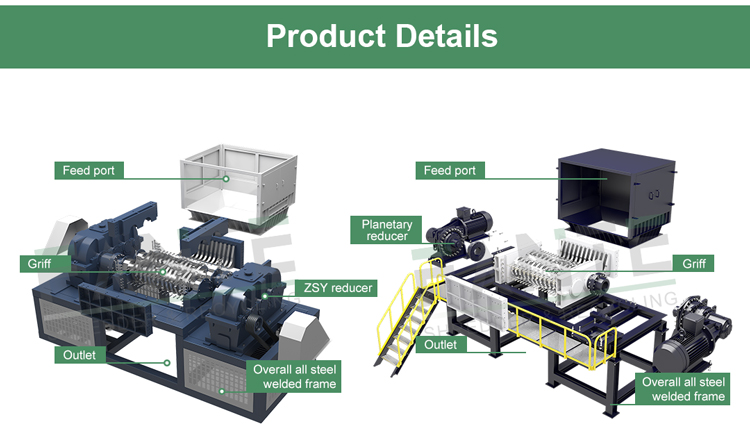

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics
◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability.
Model
FTHS-600
FTHS-1000
FTHS-1200
FTHS-1600
FTHS-1800
FTHS-2000
Power(kw)
11-15
30-75
37-150
150-264
150-220
150-500
Breaking chamber length(mm)
600
1000
1200
1600
1800
2000
Blade Size(mm)
⌀300-⌀800





Reducer
ZSY Or Planetary reducer





Heavy Duty Dual Shaft E Waste Shredder for Phones Laptops PCBs Cables Routers and Household Electronics

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
